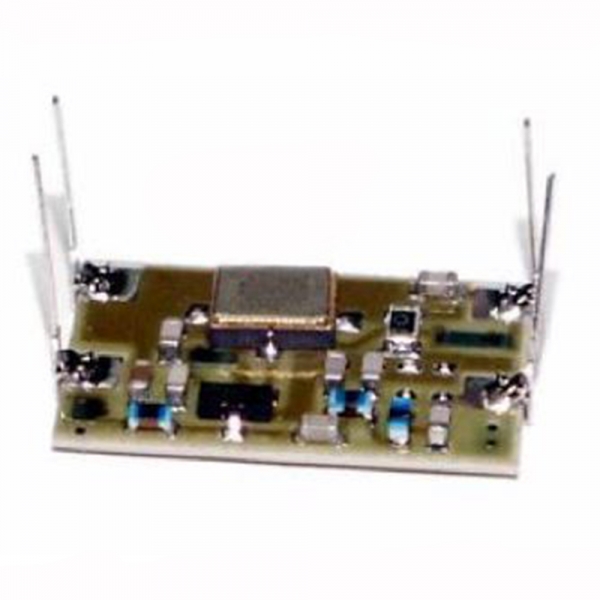

Small dimension & low consumption OOK transmitter module with external antenna ideal for application when you need to modulate ON-OFF a RF carrier with digital signals
Transmitter AM 433,92MHz +2dBm 3÷5V/6mA, mini DIP
RF MODULE, TX, AM, OOK, 434MHZ, EXT ANT, DIL
RF MOD, TX, AM, 434MHZ, EXT ANT, DIL; Frequency:433.92MHz; Supply Voltage Min:3V; Supply Voltage Max:5V; Supply Current:6mA; Modulation Type:OOK; Development Tool Type:Hardware - Module; Frequency Range:433.92MHz; Kit Features:OOK Modulation, 5Vdc Supply Voltage, 6mA Supply Current, 2dBm Output Power, DIL Package; Operating Temperature Max:80°C; Operating Temperature Min:-20°C; Operating Temperature Range:-20°C to +80°C; Supply Voltage Range:3V to 5V; Tool / Board Application:434MHz AM Transmitter; Type:Transmitter Module
RF MOD, TX, AM, 434MHZ, EXT ANT, DIL; Frequency Range:433.92MHz; Supply Voltage Range:3V to 5V; Supply Current:6mA; Modulation Type:OOK; Operating Temperature Min:-20°C; Operating Temperature Max:80°C; Development Tool Type:Hardware - Module; Kit Features:OOK Modulation, 5Vdc Supply Voltage, 6mA Supply Current, 2dBm Output Power, DIL Package; Operating Temperature Range:-20°C to +80°C; Tool / Board Application:434MHz AM Transmitter; Type:Transmitter Module
|
Physical
|
| Case/Package |
Module |
|
Technical
|
| Frequency |
433.92 MHz |
| Max Operating Temperature |
80 °C |
| Max Supply Voltage |
5 V |
| Min Operating Temperature |
-20 °C |
| Min Supply Voltage |
3 V |
| Nominal Supply Current |
6 mA |
|
Compliance
|
| REACH SVHC |
No SVHC |
| RoHS |
Compliant |
