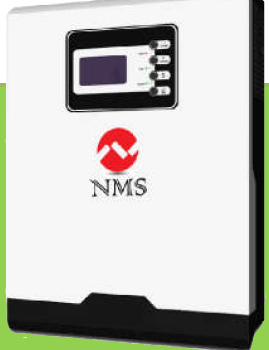

VM II Series 3KW / 5.5KW (1ph in / 1ph out)

High efficiency pure sine wave solar inverter
● Output power factor 1

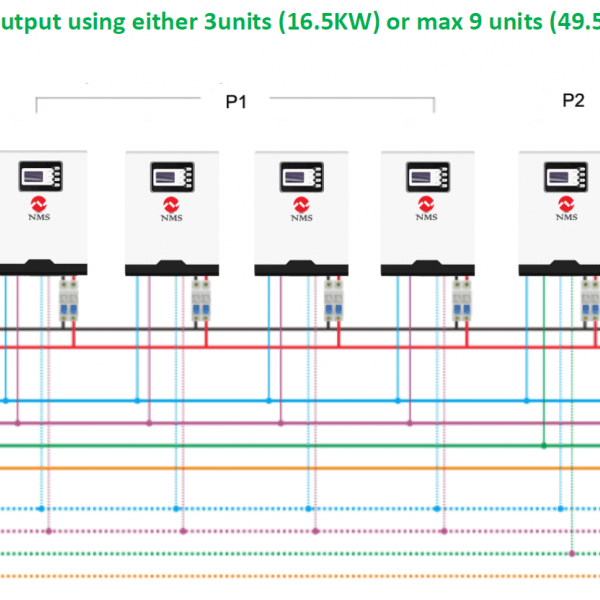

● Parallel operation up to 9 units

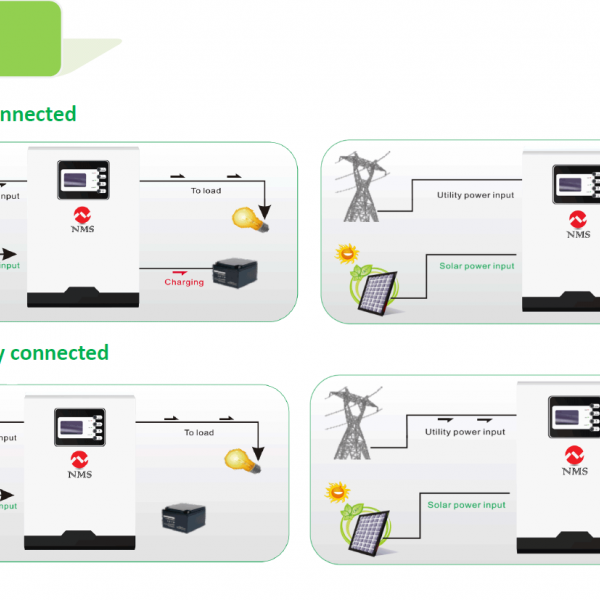

● Inverter running without battery connecting
● Built-in 100A MPPT solar charger
● High PV input voltage range 120-450Vdc
● Built-in anti-dusk kit for harsh environment

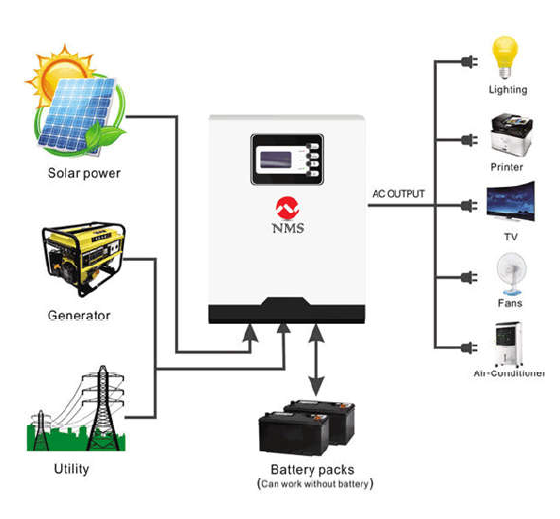

● Battery independent design
● Battery equalization function to optimize battery performance and extend lifecycle
● Anti-Dust Kit

Model VM II 3K-24 VM II 5.5K-48

Rated Power 3000VA / 3000W    5500VA / 5500W

INPUT

Voltage 230VAC

Selectable Voltage Range 170-280VAC(For Personal Computers);90-280VAC(For Home Appliances)

Frequency Range 50Hz / 60Hz(Auto Sensing)

OUTPUT

AC Voltage Regulation(Batt.Mode) 230VAC ± 5%

Surge Power 6000VA 11000VA

Efficiency(Peak) UP to 93.5%

Transfer Time 10ms (For Personal Computers); 20ms (For Home Appliances)

Waveform Pure Sine Wave

BATTERY

Battery Voltage 24VDC 48VDC

Floating Charge Voltage 27VDC 54VDC

Overcharge Protection 33VDC 63VDC

SOLAR CHARGER & AC CHARGER

Maximum PV Array Open Circuit

Voltage

500VDC

Maximum PV Array Power 5500W

MPPT Range @ Operating Voltage 120 ~ 450VDC

Maximum Solar Charge Current 100A

Maximum AC Charge Current 80A

Maximum Charge Current 100A

PHYSICAL

Dimension, D*W*H(mm) 100*300*440

Net Weight(kgs) 9 10

Communication Interface USB / RS232

ENVIRONMENT

Humidity 5% to 95% Relative Humidity (Non-condensing)

Operating Temperature -10°C to 50°C

Storage Temperature -15°C to 60°C
