Leakage Energy Monitoring WIFI Circuit Breaker FACTORY Timer Remote Control Tuya App Wireless Smart Switch

Function:

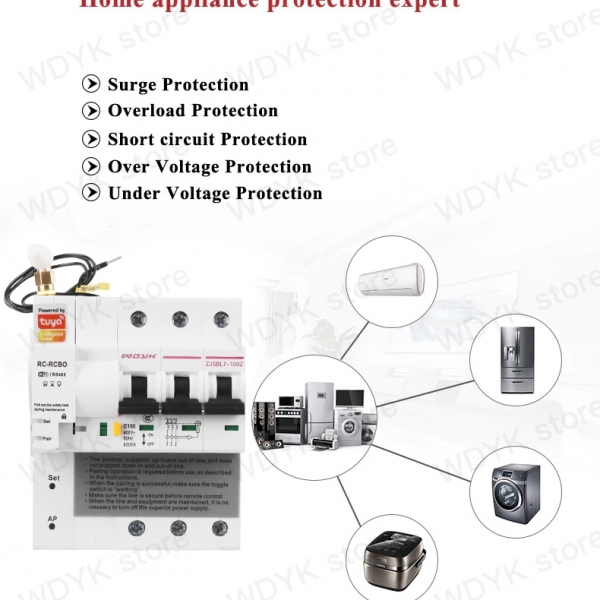

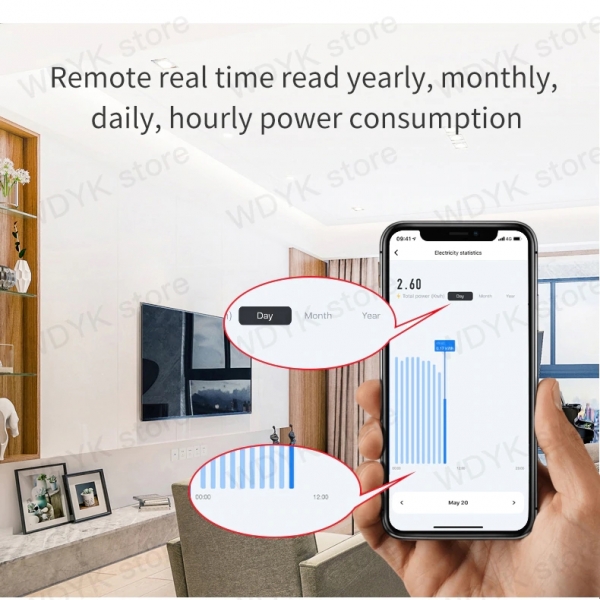

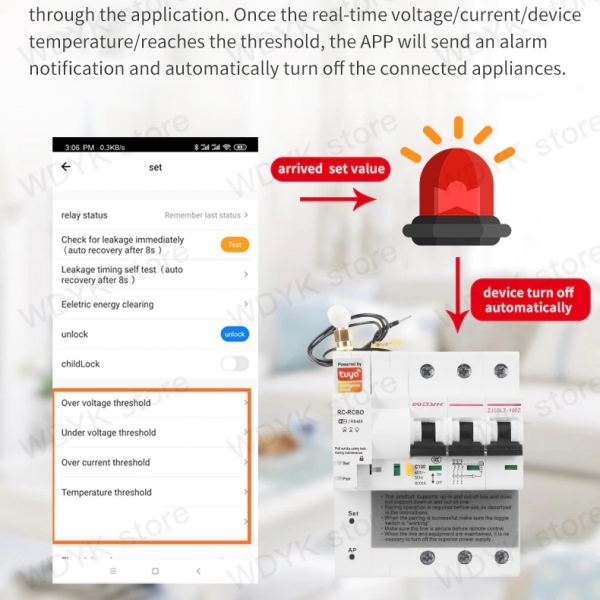

Global control,Scedule/Loop timer/timer,Energy monitoring Function,Leakage protection function.Rs485/Modbus function,Overload protection,Short-circuit protection,over-current protection,Over-voltage protection


Built-in chip (ESP8266/ESP8285) to improve the stable transmission and reception of WIFI signals, to avoid congestion interference.
Professional CE-EMC,CE-LVD  test to ensure safe and reliable communication process.

Work with: Alexa, google home, IFTTT.One phone can connect 200pcs our breaker.



Specification:


Rated voltage:1P AC230V / 3P AC400V (Noted:Customizable voltage,Contact service)
Rated frequency: 50Hz (Noted:Customizable Frequency,Contact service)
Instant trigger form: C (Noted:Customizable B、D type,Contact service)

Leakage current:30mA,100mA,300mA,(Noted:Customizable Leakage current,Contact service)

Number of poles: 1P,3P
Rated current:10A,16A,20A,25A,32A,40A,50A,63A,80A,100A
Pollution level: level 2
Level: IP20
Rated impulse withstand voltage: 6000V
Implementation standards: GB10963.1, IEC60898-1, GB / T21706
Control mode: working mode, pairing mode
Drop test: in line with GB / T4857.18
EMC test: in line with GB / T18499-2008
Nominal short-circuit breaking capacity: nic = 6kA Ics = 6kA
Operating temperature: -25 ° c ~ + 65 ° c
Mechanical life: in line with GB10963.1 ≥ 10000 times
Electrical life: in line with GB10963.1 ≥ 6000 times
Installation category: 1, ll
Temperature rise test: ≤ 60k
Salt spray test: conforms to GB / T 2423.1724h
